Three phase motor stator coil making machine
(1) Machine main function and characteristic
The stator coil making machine could be used to do multi-connect and multi-layer winding.
This coil making machine is with 4 winding heads, In one time, the machine could wind 1-4 groups of coils simultaneously, high output.
Tooling change is very fast and convenient.
Could save 999 group data, and machine automatic stop once wire run out
Free of maintenance.
(2) Application
This Three phase motor stator coil making machine is suitable for multi-connected and multi layer winding. Apply to all kinds of micro motors such as a motor, pump motor, air conditioner motor, three phase machine, etc.
(3) Technical data
Production name: | three phase stator coil making machine |
Winding head: | 1~8pc |
Wire diameter: |
0.2~1.0 mm |
Swing diameter: | 220mm |
Screw travel: | 170mm |
Max stator O.D: | 160mm |
Max stack height: | 100mm |
Winding speed: |
≤3200RPM |
Turn number resolution: | ±0.2 turn |
Power supply: | 220V/50/60HZ |
Motor power: | 0.75 KW |
Dimension: | L1520*W1220*1290mm |
Weight: | about 200kg |

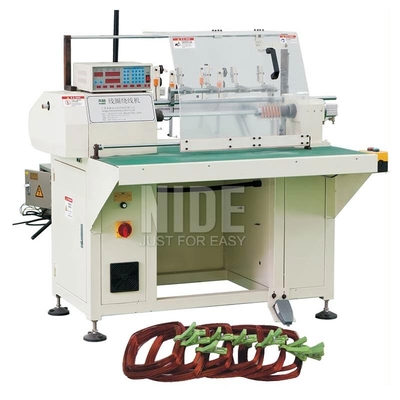

Coil making machine picture
Press the follow green button and the coil making machine starts to work
