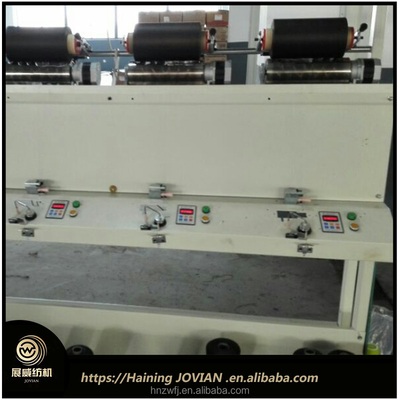

Factory Supplier High Speed ​​Ultra-fast Jumbo Twist Chemical Fiber Cotton Yarn Wrapping Machine Double Bundle Winding Winder

1 Set
MOQ
Factory Supplier High Speed ​​Ultra-fast Jumbo Twist Chemical Fiber Cotton Yarn Wrapping Machine Double Bundle Winding Winder
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Condition: New
Application: Winding Yarns
Automatic Grade: Semi-automatic
Production Capacity: 300-1000m/min
Model Number: ZW230.280
Voltage: 380v/220v
Power: 90W/spindle
Dimension(L*W*H): 13700 (length) x1050 (width) x1650 (high) mm
Weight: 350kg
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Zertifizierung: ISO CE
Name: PRECISION WINDING MACHINE
Grundinformation
Zertifizierung: ISO CE
Model Number: ZW230.280
Zahlung und Versand AGB
Packaging Details: packaged form :export wooden packing package size: length 1890mm * width 820mm * high 1380mm per set
Supply Ability: 5000 Set/Sets per Year
Produkt-Beschreibung













Product parameters





ZW230.280 high-speed Jumbo pack winder, suitable for chemical fiber, cotton yarn, industrial filament, low elastic yarn, mop line, winding into a conical or cylindrical, for the use of the process, good shape, high work efficiency, has no edge collapsing phenomenon, reduce the labor intensity of the process, adapt to the high speed production.

1.winding drive: each spindle drive alone, VVVF;
2.winding speed and density: 300-800 M / min;
3.with the electronic yarn breakage self stop function;
4.yarn diameter and dynamic range: diameter less than 290mm. The dynamic range is 200mm, 250mm;
5.with a single spindle length function;

6.advanced touch screen type man-machine interface.

7.with anti hard edge and electronic anti overlap swing function;



Bobbin type8" 10"(280mm-300mm)
StructureTwo sided machine, each (4-36) spindle
Current sourceThree phase 380V 50/60HZ
DriveSingle spindle independent AC motor drive
Power consumption0.18KW/spindle
Bobbin formingCylindrical(0°)/conical
Bobbin diameterMax 200 and 300mm
Yarn speed300-1000m/min
Electronic preventing overlapping deviceVariable frequency control
Length counting deviceControlled and displayed by PLC
Yarn tension and waxer adjustingEvery spindle has a self-cleaning
Mechanical clean yarn device

Configuration of each spindle can be fine tuned mechanical

 cleaning knife

Yarn break control device

The spindle will stop when the yarn breaks by a yambreak

control device

GovernorFrequency control
Electronic yarn cleaning deviceOptional
JointairOptional
External dimensions1850(length)×800(wide)×1650(high)mm   4 spindle size









Paoduct Showcase





HOT PRODUCTS







Haining JOVIAN Textile Machinery Co., Ltd is located in resort tide, leather capital of Haining City, Zhejiang Province. 5 kilometers from SHANGHAI-HANGZHOU express way and Hangjinqu (G60) express. Unique geographical advantage, with convenient transportation access.

JOVIAN is a comprehensive enterprise specialized in the research, development, sell and services. We covering an area of 20 acres, for modern standard workshop cover an area of about 3000square meters. We have the most edging facilities, and professional people of research, development, main production winding machine (ZW013 Type Precision Winder Machine, ZW016 Type High Speed Winding Machine, ZW280 Tpye ZW230 Type High-Speed Jumbo Pack Winder etc.) . ZW019 Type High Speed Doubling Machine, ZW015 Type Wool Spinning Winder, ZW0322 Type Doubling and Double-Twisting Machine Textile Wax and so on.
JOVIAN company attach importance to brand building, and formulate a complete set of scientific management systems. And we will continuous improvement and innovation, hope the science, management, quality, efficiency, integration into the every aspect of the business, improve the core competitiveness of the product and market resilience, to win a high admiration and is widely trusted at home and abroad.
