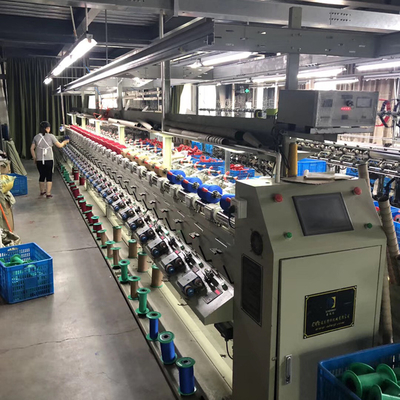

Winding Chatters Xindawei Wire Cone High Speed ​​Winding Machine For Suction Textured Wire DTY

1 Unit
MOQ
$290.00(1 - 5 Units) $280.00(6 - 11 Units) $270.00(12 - 19 Units) $220.00(>=20 Units)
Preis
Winding Chatters Xindawei Wire Cone High Speed ​​Winding Machine For Suction Textured Wire DTY
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Applicable Industries: Manufacturing Plant
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Motor
Condition: New
Application: Winding Yarns, DTY
Automatic Grade: Semi-automatic
Production Capacity: HIGH SPEED
Memory Capacity: 999999m
Voltage: 220V
Power: 360W
Dimension(L*W*H): 1580*870*1640
Weight: 210 KG
Warranty: 1 Year
Name: High Speed Yarn Cone Winding Machine for Draw Texturing Yarn DTY
Package: Wooden case
Num of Spindles: 1-108
Material: Steel
COLOR: Grey, green, white, blue
Zertifizierung: Certification
Keyword: Auto Cone Winding Machine
Speed: Max 1100 meters/min
Scope of application: Cotton, wool, silk, DTY, etc.
Grundinformation
Zertifizierung: Certification
Zahlung und Versand AGB
Packaging Details: Wooden case
Supply Ability: 500 Unit/Units per Month
Produkt-Beschreibung
Product Description

Single Spindle(Unit)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.

2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.

3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.

4. Supplied in sections of 1 up to 108 heads ready for opearation.

4 or 6 Spindles(Units)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.
2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 108 heads ready for opearation.

Detailed Images
Packing & Delivery
Specifications
Item
Technical parameters
Types of winding
Drum,Random
Mechanical speed
Up to 1200m/min (process speed depending on quality of yarn and feed packages)
Package shape
Cylindrical or conical
Traverse length
230mm
Mechanical anti-patterning system
Swing amplitude of creel :1-3mm
Package bobbin
0°,3°30’,4°20’,5°57’,9°15′
Package diameter
Up toφ 290 mm
Package density
0.2-0.4g/cm3
Fibre / count
Cotton.flax, wool, silk,chemical fiber /Ne 6…180
Auto stop while yarn break
With electronic yarn detector,the spindle will stop when yarn break
Slow start
For smooth start and better winding quality,supportting individual slow start for each spindle(available on request)
External dimensions
2.235(length) ×0.7(width) ×1.68(height)
Power supply
220V
Certifications
Related Products

Super Plastic Winding Drum

Lead: 152mm

Outer diameter: 82mm

Length: 176mm

Turns: 2 .5

Ni-P Alloy Winding Drum
Lead: 146mm
Outer diameter: 95mm
Length: 176mm
Turns: 2

Ni-P Alloy Winding Drum
Lead: 150mm
Outer diameter: 82mm
Length: 176mm
Turns: 2.5
