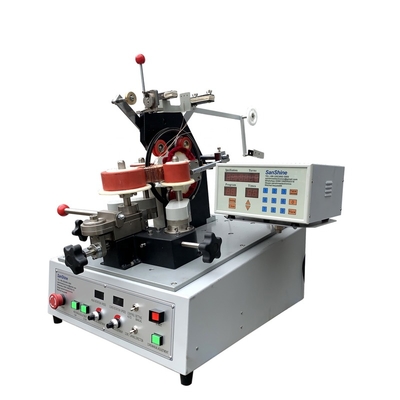

Description of SS300S-04 Slider type big toroid core current transformer winding machine coil winder :
SS300S-04 Slider type big toroid core current transformer winding machine coil winder adopt precision digital toroid controller and the slider type winding shuttle, it's an accurately and reliability digital automatic toroid-winding machine. it is used for winding big toroidal inductor with fine wire, toroidal transformer with fine wire, toroidal current transformer with fine wire, toroidal coil with fine wire , toroid chock coil, power inductors, power magnetics, UPS inductor with fine wire, converter inductors with fine wire, heavy toroidal core with fine wire coils,etc.

Features of SS300S-04 Slider type big toroid core current transformer winding machine coil winder :
1. Collocate the slider type winding head to wind fine wire, and interchangeable roller table with different size
shuttle(magazine) for different dimensions coils and different wires,turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. SS-300S Series slider type Digital Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.

SS300S series slider type fine wire automatic big heavy toroid coil winding machine

Specification of each model :
Model
SS-300S-04
Wire diameter
0.12 -0.4mm
Max. winding speed
700 rpm
Max. final coil O. D.
Φ 60 -200mm
Wire spacing
stepping motor control
Min. final coil I. D.
Φ20mm
Supply voltage
AC 220V(50Hz)
Max. final coil height
80mm
Mechanical dimensions
550*500*700
Controller storage capacity programs
29(set)
Weight
94kg
