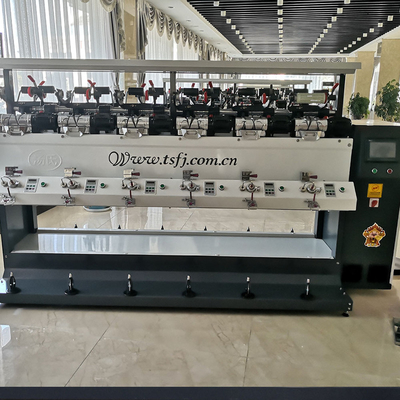

Soft Winder TS008 Textile Coil Soft Cone Winder Winding Machine Before Yarn Dyeing

1.0 Pieces
MOQ
Soft Winder TS008 Textile Coil Soft Cone Winder Winding Machine Before Yarn Dyeing
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Applicable Industries: Textile
Showroom Location: Egypt, Bangladesh
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor
Condition: New
Application: soft winder
Automatic Grade: Semi-automatic
Production Capacity: HIGH SPEED
Memory Capacity: 999999m
Voltage: 380v/220v
Power: 90w 50HZ
Dimension(L*W*H): 11650*1150*1600mm
Weight: 2000kg
Warranty: 12 Month
After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
Name: TS008 textile bobbin Soft cotton Winder before yarn dyeing in india
Spindle: 2-108 Spindles Winding Machine
Color: Photo
Application Field: Textile Industry
Winding speed: 200-1000m/min
Machine Type: Double Sided
Take Up Bobbin: Tube Bobbin
Product Type: Tube
Material: Cast Iron
After Warranty Service: Video technical support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Viet Nam, Indonesia, Thailand, Malaysia, Bangladesh, South Africa, Uzbekistan
Zertifizierung: ISO9001:2008 / CE
Grundinformation
Zertifizierung: ISO9001:2008 / CE
Zahlung und Versand AGB
Packaging Details: TS008 textile bobbin Soft cone Winder winding machine before yarn dyeing -Packed in wooden cases
Supply Ability: 100 Set/Sets per Month
Produkt-Beschreibung
Product Description

TS008 textile bobbin Soft cone Winder winding machine before yarn dyeing Please click here to view more products

Bobbin type

5"(170mm)

Layout

Double-side, can be 12-96 spindles

Power Supply

Three phases 380V 50/60HZ

Driving

Every spindle per motor

Power Comsumption

0.09KW/spindle

Take-up package

Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15

Package Diameter

Max.250mm

Yarn tension and waxing device

Every spindle has a yarn tension

Auto Stop Device

Each spindle install auto stop device

Traverse Device

Mechanical Traverse suit for soft winding

Cleaner device

Every spindle has a Mechanical Knife yarn cleaner

Electronic Yarn Cleaner

Optional installed

Air Splicer

Optional installed

Blower cleaner

Optional installed

Lighting System

contain

Dimensions

L 11850 x W 1080 x H 1500 mm

Parameters:

1. Drive: every spindle per motor

2. Winding speed: Cotton: about 800M/min, Fiber: about 600 M/min

3. Has function of Anti-Hard-Edge and Electronic Anti-Stack.

4. Package Dia≤ 220mm; Take-up length: 152mm.

5. Each spindle with length counter.

6. Advanced control panel.Drum

TS008S High Speed Soft winding machine, it's mainly for the Yarn Dyeing preparing

using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it

can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and

well take-up finished shape, can alleviate the intensity of labour for next processing work.

Comparison

FAQ

Q: What is the real winding speed for this machine

A: It's depends on how the performance and take up package formed, if the take up package formed well, then you can increase the speed, normal winding machine is 600-800m/min

Q: My bobbin is some kind of special, is that workable on the machine?

A: We will make the spindle head base on the bobbin that customer provide.

Q: The yarn always break, how to solve it?

A: 1. Check the tension first, if the tension is too big, just reduce some weight

2.Check the yarn whether it's in the right path.

3.Check the quality of yarn, sometimes yarn breakage due to the weak yarn

Q: How to solve the problem if the package become too hard and start bounce?

A: Try to reduce the tension or speed

Q: Does your machine shake when full load running?

A: No, our machine frame is very strong, it's quite stable

Packaging & Shipping

Packaging&Shipping

Before loading,the machines are covered with waterproof plastic first,then packed in solid wooden case.

Company Information

Jiangsu Tangshi Textile Machinery Group Co., Ltd was an experienced and professional manufacturer, it already has 30 years' experience of producing drum winding machines, with advanced technics and production equipments it can output more one thousand winding machines annually. after these years hard work and faith cooperation, Jiangsu Tangshi Textile Group Co., Ltd got a good reputation. our products like GA014 series soft and tight winding machine, TS008 semi-automatic soft and tight winding machine, TS230,280,290,300 big take-up winding machine. and we also can customize machines according to the customers' special demands. we service the textile industry in conformance with the aim of “professional produce, faith operation, reputation brand ”. The products are widely sold at domestic and also export to south-east asia countries gradually.To supply all kinds of winding machine is our company's feature, good quality and in time deliverly is our promise. sincerely hope we can go forward hand in hand and set up bright life together!Winding machine------------Jiangsu Tangshi Textile Machienry Group Co., Ltd will be your best choose!
