Winding Threads Factory Supplier High Speed ​​Weft Winder Coil Wire Hank To Cone Winding Machine

1 Set
MOQ
Winding Threads Factory Supplier High Speed ​​Weft Winder Coil Wire Hank To Cone Winding Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Condition: New
Application: Winding Yarns
Automatic Grade: Semi-automatic
Production Capacity: 1100 M / min
Model Number: ZW016C
Voltage: 380v/220v
Power: 90w 50HZ
Dimension(L*W*H): 2108mm*950mm*1500mm
Weight: 350kg
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Zertifizierung: ISO CE
Name: PRECISION WINDING MACHINE
Grundinformation
Zertifizierung: ISO CE
Model Number: ZW016C
Zahlung und Versand AGB
Packaging Details: packaged form :export wooden packing package size: length 2108mm*950mm*1500mm per set
Supply Ability: 5000 Set/Sets per Year
Produkt-Beschreibung













Product parameters

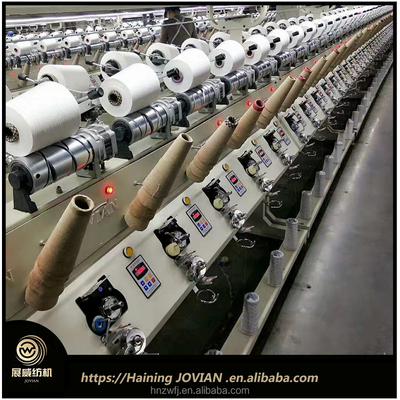

  Introduction of ZW016C type loose and tight type high speed winding machine
This machine for compact yarn production cone type, for needle loom, weaving machine, warping machine, hosiery machine use. The winding speed of the machine can be controlled automatically through the computer, up to 1100 M / min. The control of radial anti aliasing device is convenient. Advanced yarn clearing and tension mechanism with photoelectric yarn to avoid yarn winding. The precision and sensitivity of the device can be used to ensure that the length (weight) of the winding is uniform. Electric rotating waxing device can meet the needs of the yarn and the uniformity of the amount of wax. It’s the perfect machine for rewinding ,separate tube yarn (cotton, hemp, silk and chemical fiber yarn )

Main features:
1.durable metal mandrel holder
2.easy to open the bobbin bracket center positioning structure, easy to remove the bobbin winding.
3.the inlet and outlet of the yarn has ceramic protection, it can avoid the weight of the yarn due to friction.
4.groove tube with dust, anti winding device, can prevent the accumulation of dust, to protect the rotating bearing.
5.double-sided arrangement of spindle, each section 12 spindles, can be more than one series installation, up to 9 knots for a (108spindles)
6.rotating pin type and weight type yarn brake freely controlling winding tension.
7.spring bracket pressure balancing device, can make the winding start to the end of the uniform winding density.
8.electric rotary device to ensure uniform waxing waxing.
9.Holzer component electronic length measuring device, to ensure that the number of spindles of the spindle is exactly the same.
 user set:
1.Special bobbin center positioning device for
2.Diameter 95mm grooved drum for winding various yarn type
3.Suspension type automatic air splicer.
4.The empty bobbin recovery conveying belt device.
5.Clear uniform wax knife gate device.
6.Electronic clean yarn system



Tec featuresTechnical parameters of winding machine
Loose tubeO/D82mm,pitch2.5,symmetrical type ( 0°)
Tight tubeO/D82mm,pitch2.5,asymmetrical type
Forming bobbin ( loose )0°cylindrical,round table3°30’,4°20’
Forming bobbin ( tight )0°,3°30’,4°20’,5°57’,9°15’(only expansion spindle)
Automatic length

According to the product , it can set the winding yarn length

 , maximum length 999999 meter.

Slow start functionEnsure a smooth start, improve the quality of winding
Weight type yarn brakePrevent yarn jitter in feed, provide appropriate winding tension
Electric waxing device

Put into square hole wax, and gravity, each spindle uniform

waxing

Cleaning regulatorIt can rasy to cleaning and regulate the distance of knife gete.
Traversing gear

Each independent motor drive, the transverse momentum can

be adjusted

SetEach section of 12 spindles
Drive mode

With a long shaft of the brushless DC motor, can be a single

spindle speed, the overall speed.

Maximum speed1100 M / min, each side can be set up independently.
Traverse rangeLoose parts 147mm,also have 142mm. tight parts 152mm.
Yarn stand balancerSpring balance adjustment winding pressure
Yarn proberOptical sensors
Bobbin max diameter250mm
ON/OFF  button switch

Single spindle film switch control, LED real-time display of the number of meters, the Front side of the liquid

 crystal screen one side of the total control.

Radial preventing stackComputer control radial preventing stack setting parameters
Round blowing and suction cleaner1100Wpower
Power consumption40w/spindle(max speed), and cleaner power
Current sourceThree-phase power  400V+/-10% ,  50/60Hz
The weight /size of 12 spindle350kg  2108mm(length)*950mm(wide)*1500mm(high)
The weight /size of cleanerAccording to the quantity of spindle
The weight/size of electric control box 35kg  700 mm(length)*300mm(wide)*1350mm(high)









Paoduct Showcase





HOT PRODUCTS







Haining JOVIAN Textile Machinery Co., Ltd is located in resort tide, leather capital of Haining City, Zhejiang Province. 5 kilometers from SHANGHAI-HANGZHOU express way and Hangjinqu (G60) express. Unique geographical advantage, with convenient transportation access.

JOVIAN is a comprehensive enterprise specialized in the research, development, sell and services. We covering an area of 20 acres, for modern standard workshop cover an area of about 3000square meters. We have the most edging facilities, and professional people of research, development, main production winding machine (ZW013 Type Precision Winder Machine, ZW016 Type High Speed Winding Machine, ZW280 Tpye ZW230 Type High-Speed Jumbo Pack Winder etc.) . ZW019 Type High Speed Doubling Machine, ZW015 Type Wool Spinning Winder, ZW0322 Type Doubling and Double-Twisting Machine Textile Wax and so on.
JOVIAN company attach importance to brand building, and formulate a complete set of scientific management systems. And we will continuous improvement and innovation, hope the science, management, quality, efficiency, integration into the every aspect of the business, improve the core competitiveness of the product and market resilience, to win a high admiration and is widely trusted at home and abroad.
