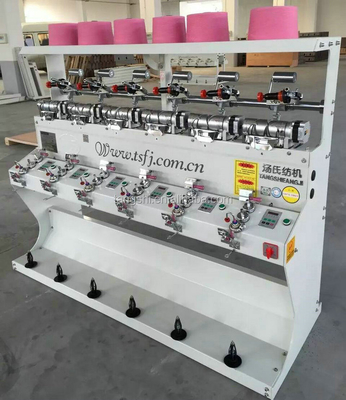

For yarn rewinding from cone to con manufacturer directly supply TS008 knitting 6 shaft winding machine

1 Set
MOQ
For yarn rewinding from cone to con manufacturer directly supply TS008 knitting 6 shaft winding machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Condition: New
Application: for yarn rewinding from cone to con
Automatic Grade: Automatic
Production Capacity: 300-1000 M/Min
Model Number: TS008
Voltage: 380V
Power: 0.09kw per spindle
Dimension(L*W*H): 1900 x 750 x 1600mm (6 spindles)
Weight: 300kg per group
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Zertifizierung: ISO9001:2008 / CE
Type: Winder Machine
Working Type: Each spindle separate
Spindle No: 2, 4, 6 spindles
Machine Type: one Side
Speed: 300-1000 M/Min
Take Up Bobbin: Tube bobbin, Conical Cone
Length Counter: installed
Auto Stop device: Installed
Grundinformation
Zertifizierung: ISO9001:2008 / CE
Model Number: TS008
Zahlung und Versand AGB
Packaging Details: Wholesale cone rewinding machine /TS008M bobbin thread winding machine is packaged by wood case.
Supply Ability: 50 Set/Sets per Month 6 spindles winding machine
Produkt-Beschreibung



Machine Application:

      TS008M Small type Cone winding Machine, it’s mainly for cone to cone rewinding using with waxing device, suit for winding like Fiber yarns, Cotton yarns, DTY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.



Parameters:



Bobbin type:6’(170mm)
Layout:one-side, can be 2, 4, 6 spindles
Power SupplySingle phase 220V 50/60HZ
DrivingEvery spindle per motor
Power Consumption0.09KW/spindle
Take-up packageTube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Yarn tension and waxing deviceeach spindle has a disc tensioner and waxing device
Auto Stop DeviceEach spindle has yarn detector
Electronic Anti-StackComputer control
Cleaner deviceEvery spindle has a Mechanical yarn cleaner
Electronic Yarn CleanerOptional installed
Air SplicerOptional installed
DimensionsL 1900 x W 750 x H 1600 mm (6 Spindles)
