Name: Winding Chats New Style Winding Machine Manufacturer
Brand: Winding Chats New Style Winding Machine Manufacturer
SKU: TS008M
Rating: 4.7 (168 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Condition: New

Application: Winding Yarns

Automatic Grade: Semi-automatic

Production Capacity: HIGH SPEED

Memory Capacity: 999999m

Model Number: TS008M

Voltage: 220v

Power: 90w 50HZ

Dimension(L*W*H): 1880*620*1500mm

Weight: 200kg

Warranty: 12 Month

After-sales Service Provided: Engineers available to service machinery overseas

Zertifizierung: ISO9001:2008 / CE

Name: high speed winding machine

Grundinformation

Zertifizierung: ISO9001:2008 / CE

Model Number: TS008M

Zahlung und Versand AGB

Packaging Details: Standard export cases

Supply Ability: 500 Set/Sets per Month

Produkt-Beschreibung

Exhibition

Certifications

Product Description

Application:

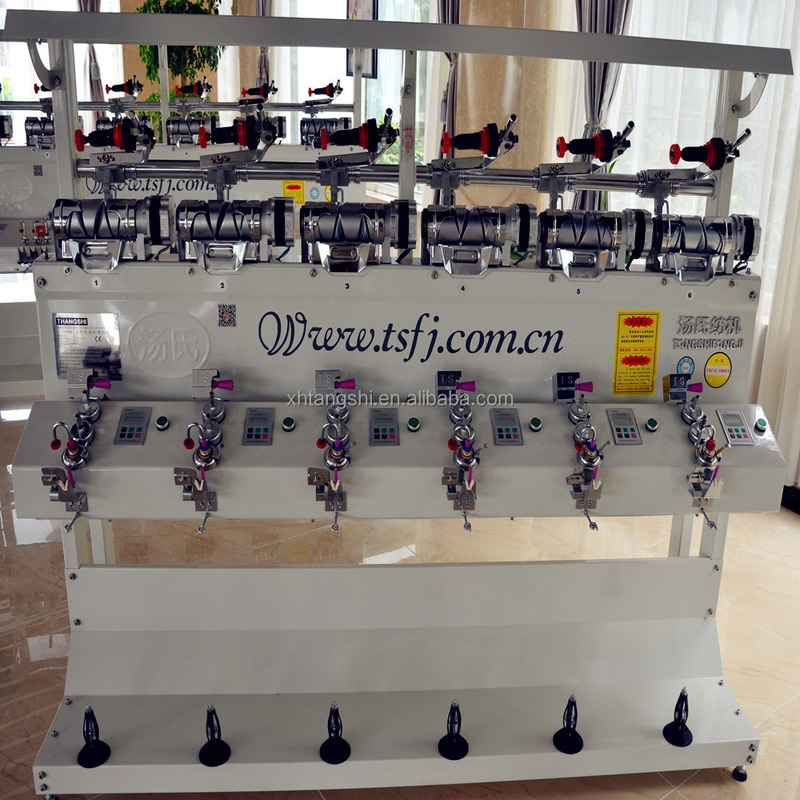

TS008M High Speed Tight(Hard) winding machine, it’s mainly for the yarn After Dyeing rewinding or yarn rewinding using cone to cone directly, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.

Equipments:
Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)

Parameters:

1. Drive: every spindle per motor

2. Winding speed: 300-1000 M/min

3. Has function of auto stop when yarn break.

4. Package Dia≤ 250mm; Take-up Traverse: 150mm;

5. Each spindle with length counter;

6. Advanced control panel;

Technical parameters:

Bobbin type:	1"(170mm)
Layout	can be 2,4,6,8,12~108 spindles
Power Supply	220V 50/60HZ
Driving	Every spindle per motor
Power Comsumption	0.09KW/spindle
Take-up package	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Yarn tension and waxing device	Every spindle has a yarn tension and waxing device
Auto Stop Device	Each spindle install auto stop device
Cleaner device	Every spindle has a Mechanical Knife yarn cleaner
Electronic Yarn Cleaner	Optional installed
Air Splicer	Optional installed
Blower cleaner	Optional installed
Lighting System	contains
Dimensions	L 1880 x W 620 x H 1500 mm
