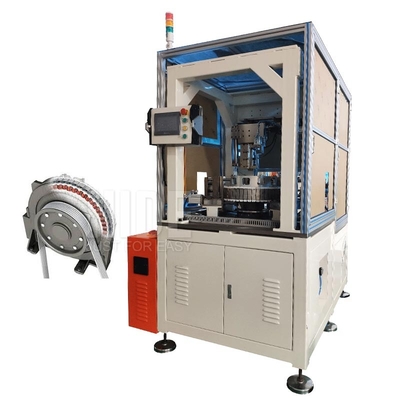

Automatic Elevator Motor Coil Winder High Efficiency Elevator Motor Winding Machine / BLDC Traction Motor Stator Coil Winding Maker

Automatic Elevator motor winding machine for BLDC Traction motor stator and external armature coil winding

(1) Machine induction:

This motor winding machine is designed for the Elevator motor stator coil winding. Equipped with the servo control system, able to diagnose the fault, count the output etc. Adopts needle winding technology, Greatly improved production efficiency. The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed, easy for operation and maintenance.

(2) Application:

The motor coil winding machine is suitable for Elevator traction motor stator and other BLDC external armature.

(3)Function and Characteristics:

1. The motor winding machine is suitable for multi-pole motor stator coil winding. Manual loading and unloading, automatic clamping, winding and shearing.

2. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;

3. PLC control, fault display ;

4. The frame adopts thickened aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.

5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.

6. Quick change-over of tooling;

7. Equipment safety index: accord with CE standard.

8. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.

9. The wire tightness is moderate, no injury, no breakage, etc.

(4) Technical parameter:

(5) Picture show
