Vertical Coil Winding Machine
(1) Main technical data
Winding head: 1pc
Wire diameter: 0.2~1.2mm
Winding speed: ≤2500RPM
Max stack OD: 160mm
Max stack height: 100mm
Fly fork diameter: 300mm
Transfer number: 1~5 section
Power supply: 380V/50/60HZ 7KW
Weight: about 1000kg
Dimension: L2400*W1000*2450mm
(2) Application:
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

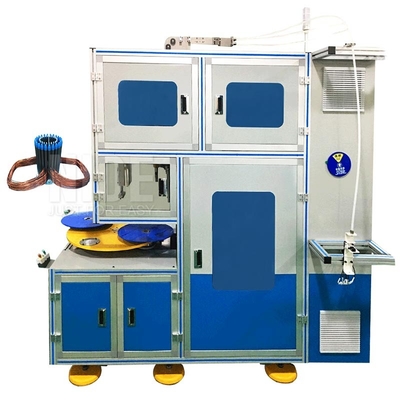

(4)The stator coil winding machine picture
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
