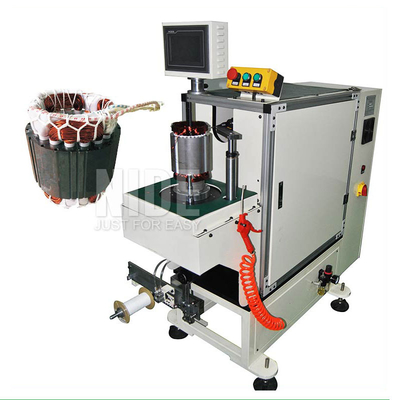

factory cooler motor stator winding automatic lacing machine for electric motor manufacture

This stator lacing machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

(1) Technical data
Stator ID: 40~100mm
Stator OD: Max. 160mm
Stack length: 30~160mm
Over-hang height: Max. 45mm
Lacing mode: slot by slot/ interval slot/ fancy lacing
Lacing speed: 0.5s/s
Power: 380V/50/60HZ 3.5KW
Machine weight: about 600kg
Machine dimension: L1500*W650*H1700mm

(2) Machine main function and characteristic
This stator lacing machine adopts servo driven system, CNC control design and HIM program.
The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
Main spindle adopts servo control system. The rotation speed can be set.
Two needles driven by servo system lace upper and lower coil simultaneously.
Machine can automatically feed thread and cut thread. There is no need to tie a knot.
Tooling change is fast and convenient. Stator stack length range is 50-130mm.
Lacing tension can be set,
Production capacity ≤1s/slot.
Should be no copper wire snap and wire enamel broken.
Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%
his machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.

Stator lacing machine running process

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
