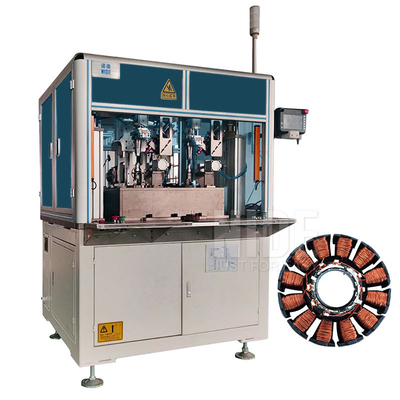

The factory automatic electric motor external rotor winding machine with 2 station needle winder

1.0 Sets
MOQ
The factory automatic electric motor external rotor winding machine with 2 station needle winder
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Showroom Location: Brazil, India
After-sales Service Provided: Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Product Name: BLDC external rotor needle coil winding machine
Zertifizierung: Main electric components are CE certificated.
Machine certificate: CCC
Color: customized
Used for: fan motor armature rotor
winding method: needle winding
Type: Fully Automatic
Voltage: 380V
Weight: 600kg
After Warranty Service: Video technical support, Online support
Local Service Location: Turkey, United States, Italy, Viet Nam, Brazil, India, Mexico, Thailand, Argentina, South Korea
Grundinformation
Zertifizierung: Main electric components are CE certificated., CCC
Zahlung und Versand AGB
Packaging Details: The Blower BLDC motor armature rotor needle winding machine is Suitable for sea transportation
Supply Ability: 120 Set/Sets per Year
Produkt-Beschreibung
Product Description
Automatic Electric Motor External Rotor Coil Winding Machine with 2 Stations Needle Winder
(1). Automatic external rotor winding machine Technical data :
Product name:
Automatic external rotor needle winding machine
External rotor O.D.:
80-200mm
BLDC rotor height:
18-35mm
Wire diameter:
0.2-1.3mm
Winding method:
needle winding
Power supply:
220V,50/60 Hz
Parallel winding wire number:
1-8
Working stations:
2
Machine weight:
about 700KG
Dimension:
1300*800*1500mm

(2). Automatic external rotor winding machine Application:

The automatic external rotor winding machine is used for BLDC motor manufacturing ,such as air heaters motor, heat pumps motor, condensers motor, cooling units motor, evaporators motor, electronic equipment motor for air or heat dissipation, etc.

(3). Automatic external rotor winding machine Function and Characteristics:

1. The automatic motor external rotor winding machine adopts needle coil winding technology, is sutiable for multi-pole BLDC armature coil winding. Manual loading and unloading, automatic clamping, winding and shearing.
2. The frame adopts thickened 4080 aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding
at high speed, the vibration is very small.
3. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
4. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
6. Quick change-overof tooling;(20 minutes with proficiency)
7. Full aluminum alloy protection
8. PLC control, fault display
9. The wire tightness is moderate, no injury, no breakage, ect.
10. The salt test of the product is carried out within 10 mA in one minute.
11. Equipment safety index: accord with CE standard.
12. Efficiency: 120 rev / min.
13. Beat: 5 minutes / BLDC rotor.
14. Noise: 60-70 decibels or less.

(4). Automatic external rotor picture display:
Recommend Products
Packing&Shipping
After Sales Service
Customerized service
1. Customized product design and manufacturing
2. Customized tranning
3. Technical suggestions
After-sales service
1. Warranty Period: 12 month usually
2. Overseas service center available
3. Engineers available to service overseas
QC and R&D
Certifications
Company Introduction
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
